NUO wood species

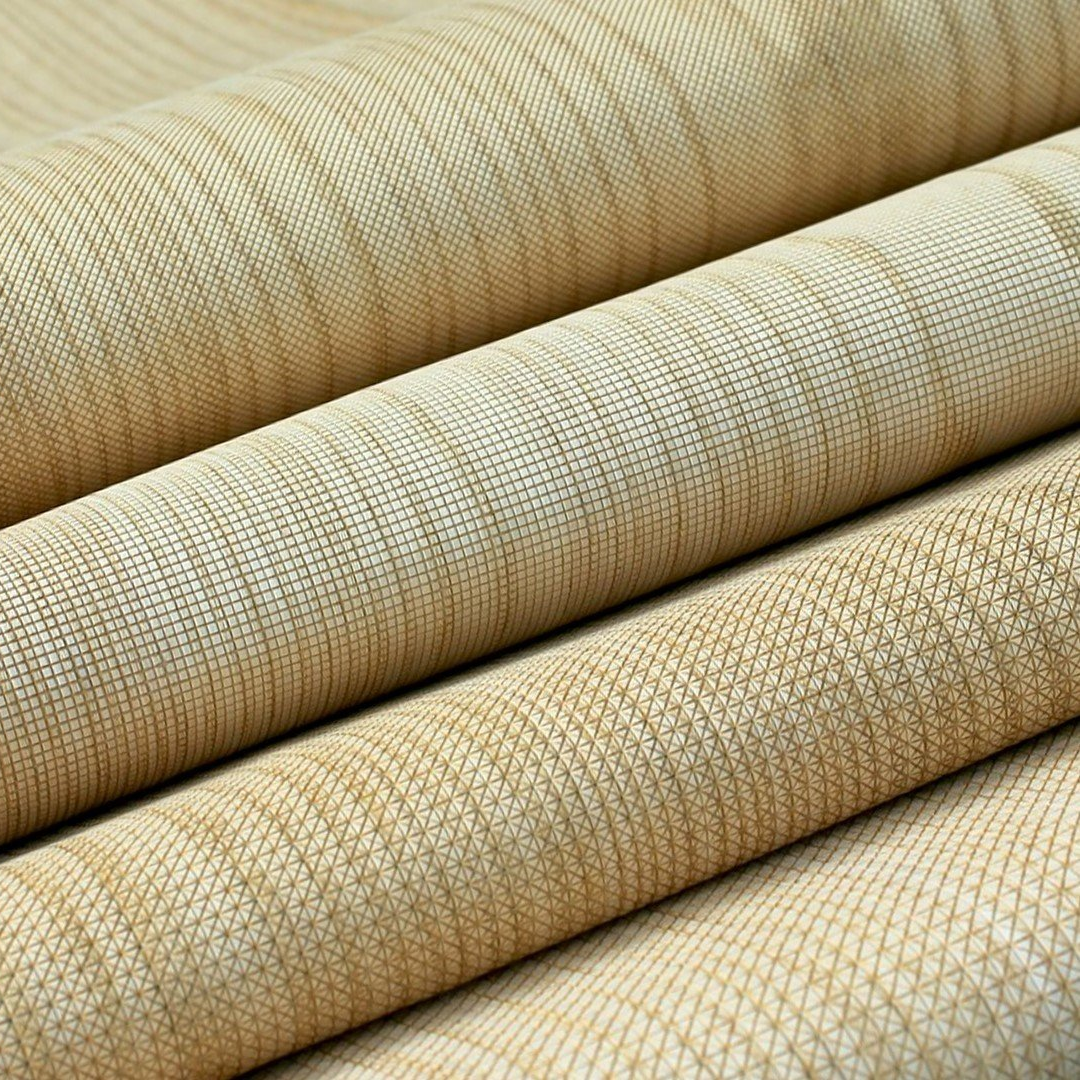

Natural Ash veneer

Ash is one of our most valuable deciduous trees and is found in riparian forests and along streams and rivers. The very elastic and shock-resistant ash is well known because of its use for tool handles and gymnastics equipment. The ring- and coarse-pored wood shows a typical and expressive character. Due to clearly separated annual rings, its texture is distinctively figured on the tangential surfaces and streaky on the radial surfaces. The sapwood and heartwood has a whitish to whitish-yellowish or white-red colouring.


The wood species ash is available in the engravings TX, T4, T1S and T1L.

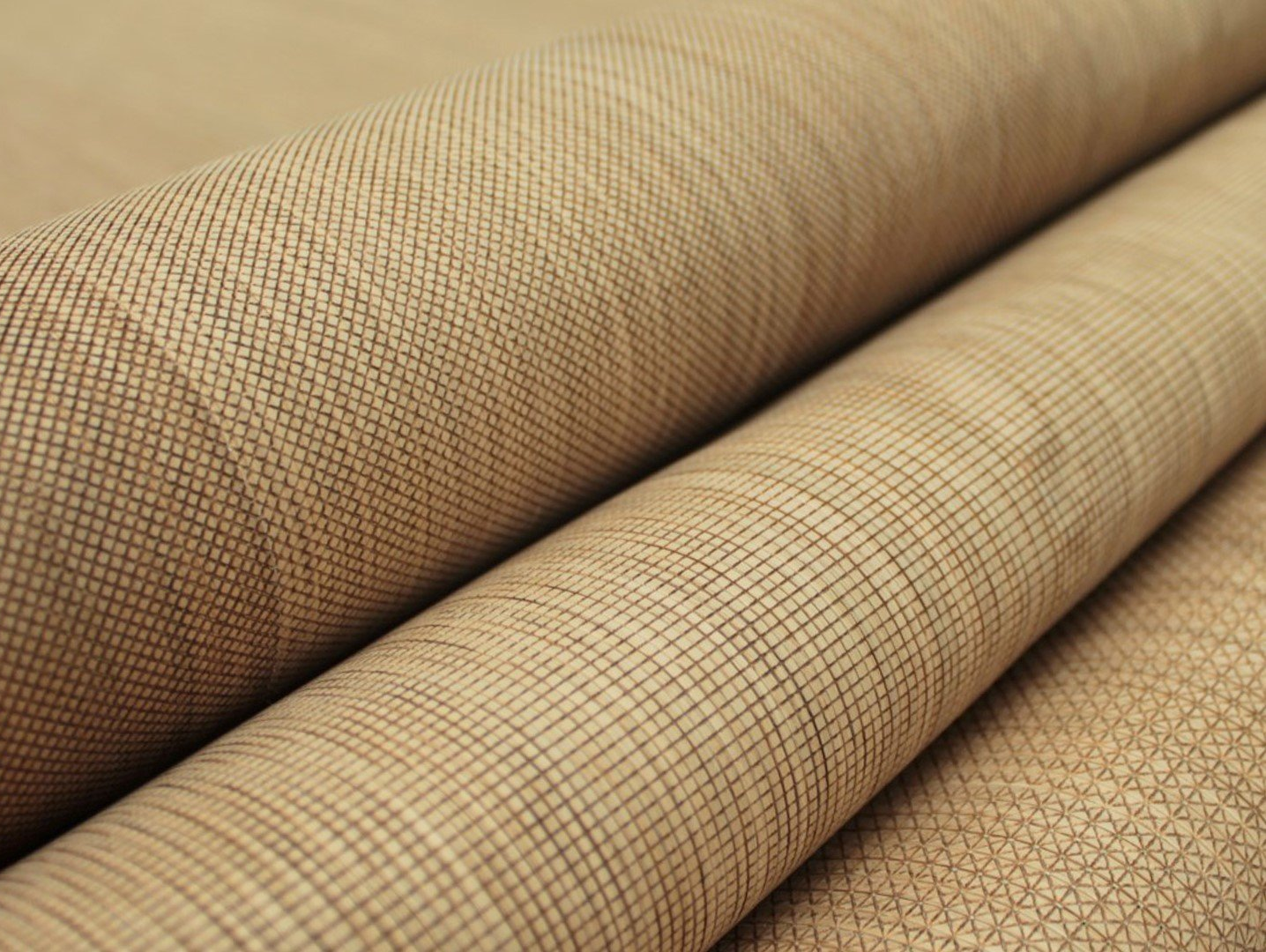

Natural Oak veneer

The oak was considered a sacred tree by many civilized peoples and was particularly valued for its size, hardness and longevity. The oak has a medium coarse texture and often has an irregular or cross-grained grain. In addition, the longitudinal surfaces show beautiful flattening or stripes, which give the light yellow to medium and dark brown coloured wood a decorative touch. The large and wide rays of wood emphasize this decorative character as vivid mirrors or spindles.

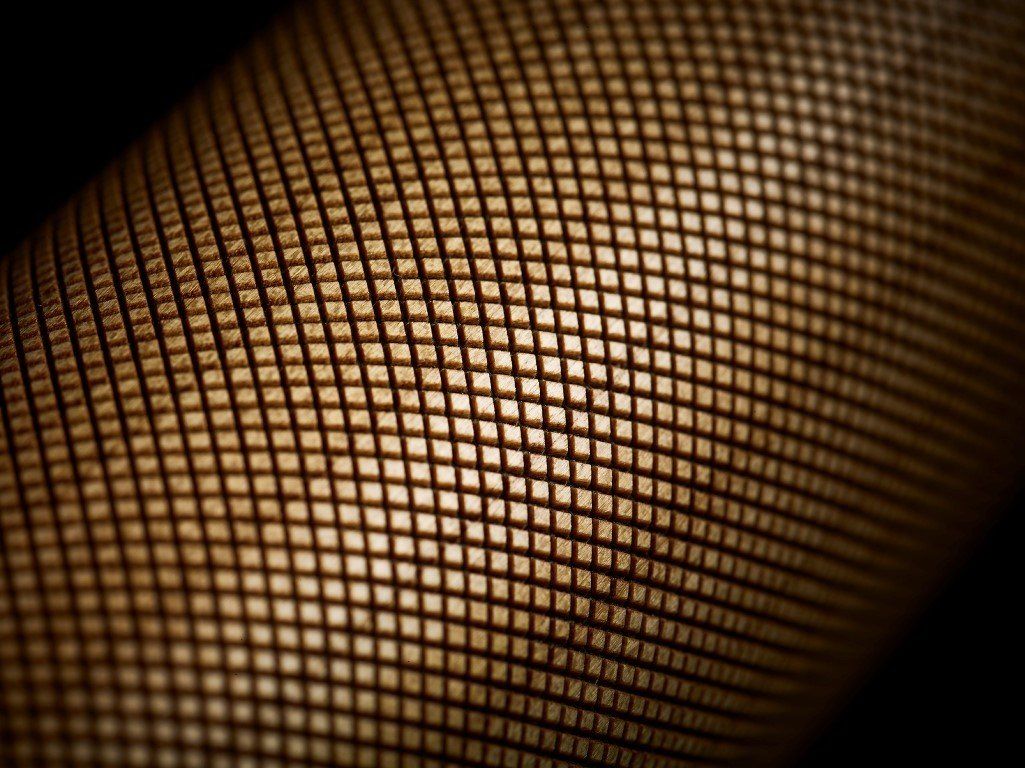

The oak wood is available in TXM, T4M, and T1L engravings. These engravings are slightly larger than TX and T4 on the other wood species.

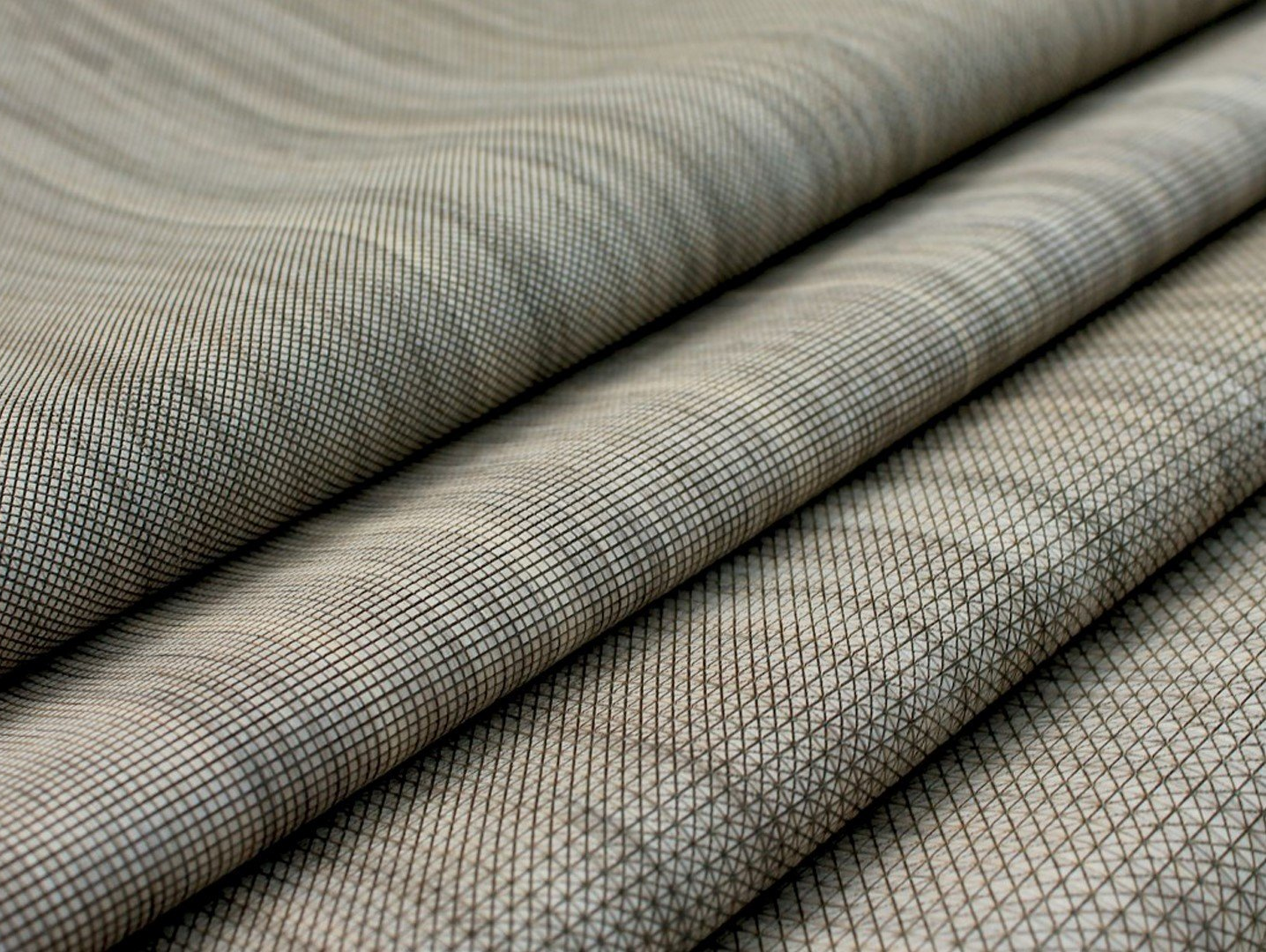

Natural Walnut veneer

Walnut, which belongs to the noble deciduous woods, is known for its historical use for high-quality furniture and objects in the Renaissance and Baroque periods. This beautiful noble wood has a rich grey-brown to chocolate-brown, also reddish-brown colour with a strong sapwood area which is usually adjusted by steaming. The colour contrasting annual rings produce a striking floral or stripy texture. Numerous variations of the veneer appearance are created by differently pronounced almost black colour stripes.


Walnut is available in the engravings TX, T4, T1S and T1L.

Natural beech veneer

If Germany has a genuine World Heritage Site, then it is its extensive beech forests. This popular furniture wood has a simple, almost purist texture and, when left undamped, it appears almost white. Narrow and darker late wood clearly marks the growth zones and draws a light, visually stimulating grain on the tangential surfaces.


The wood species Natural Beech is available in the engravings TX, T4, T1S and T1L.

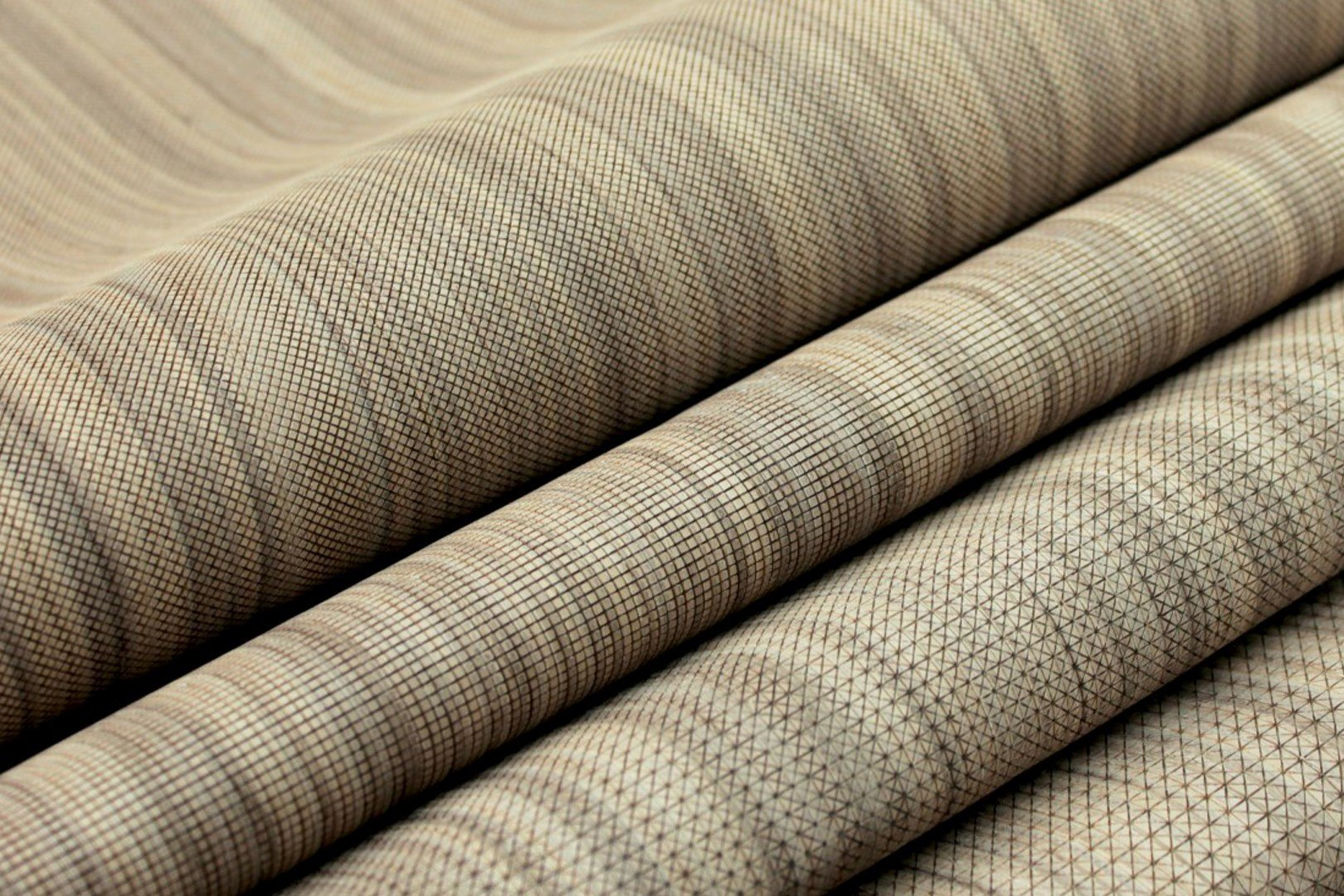

Wood species Fineline, design walnut

This is a decorative multilaminated real wood veneer. The stripy veneer pattern is due to the manufacturing process. The logs are peeled and the resulting veneers are glued into a block after a staining process. This block is then sliced to produce the finished fineline veneer.


Fineline walnut is available in TX, T4, T1S and T1L.

Fineline Light

This is a decorative multilaminated real wood veneer. The stripy veneer pattern is due to the manufacturing process. The logs are peeled and the resulting veneers are glued into a block after a staining process. This block is then sliced to produce the finished fineline veneer.


Fineline Light is available in TX, T4, T1S and T1L.

NUO engravings

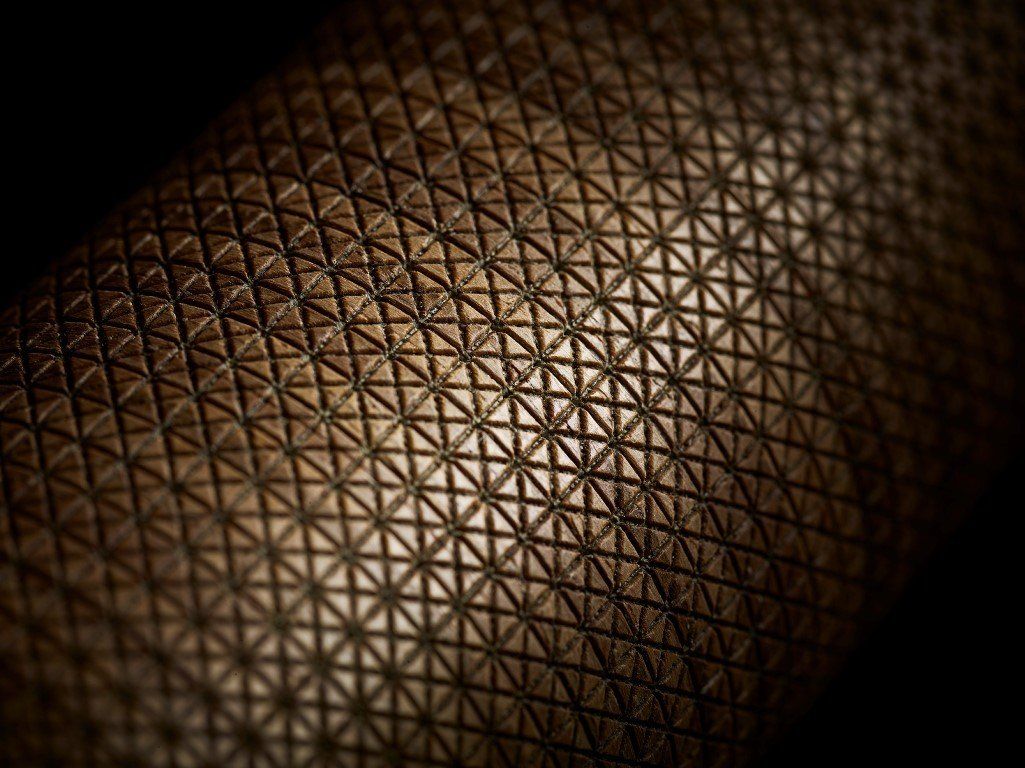

There are four different engravings to choose from, which have a grid size between 1.7 mm and max. 4 mm. The oak wood is available in three engravings.

NUO sizes

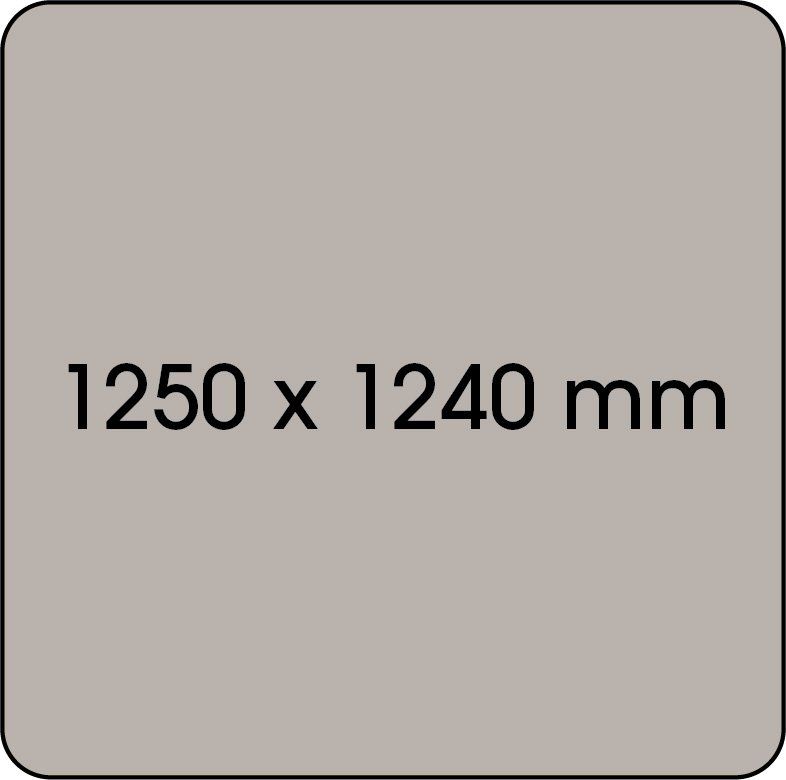

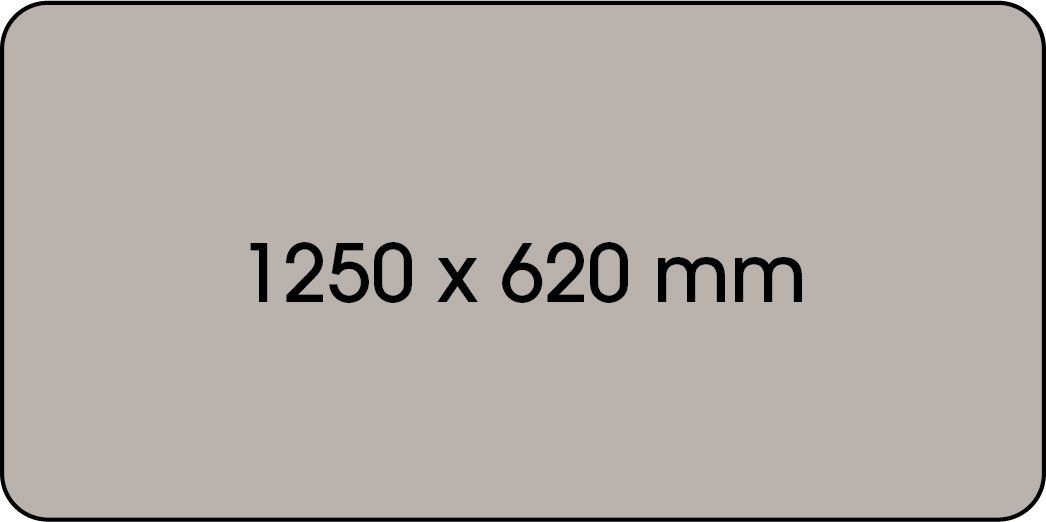

NUO is available in three standard formats. On request, significantly larger formats can be produced – up to a length of 2800 mm and a width of 1240 mm.

NUO versions


It is important to note that depending on the industry and area of application, different processing / production of the material is necessary (different designs in engraving, number of backing materials, thickness of the material due to the grinding process, coating, fire protection etc.).

NUO backing


NUO surface treatment


Zeichenfläche 1

NUO pure

NUO pure is NUO that has not been further refined with fire or surface protection. It is primarily intended for use on solid substrates. Since the processing companies in this area usually have their own coating facilities and coating in this area is only really useful after the connection with the carrier.
Download technical datasheet (PDF)
Zeichenfläche 1

NUO firestop

NUO firestop is equipped with a fire-retardant process for the interior area, so that it can be used in areas with special fire protection requirements. NUO passes orientating preliminary tests according to EN 1021 part 1 and 2 as well as according to DIN EN 13823 (fire class B1 according to EN 13501).
Download technical datasheet (PDF)
Zeichenfläche 1

NUO touch

NUO touch is coated for flexible applications of NUO, which the customer no longer needs to paint himself, but which are directly processed into end products. In this case NUO is delivered to the customer already painted.
Download technical datasheet (PDF)
Zeichenfläche 1

NUO firestop touch

NUO firestop touch is provided with both fire and surface protection and can be used as a flexible material in areas with special fire protection requirements.
Download technical datasheet (PDF)

NUO colours

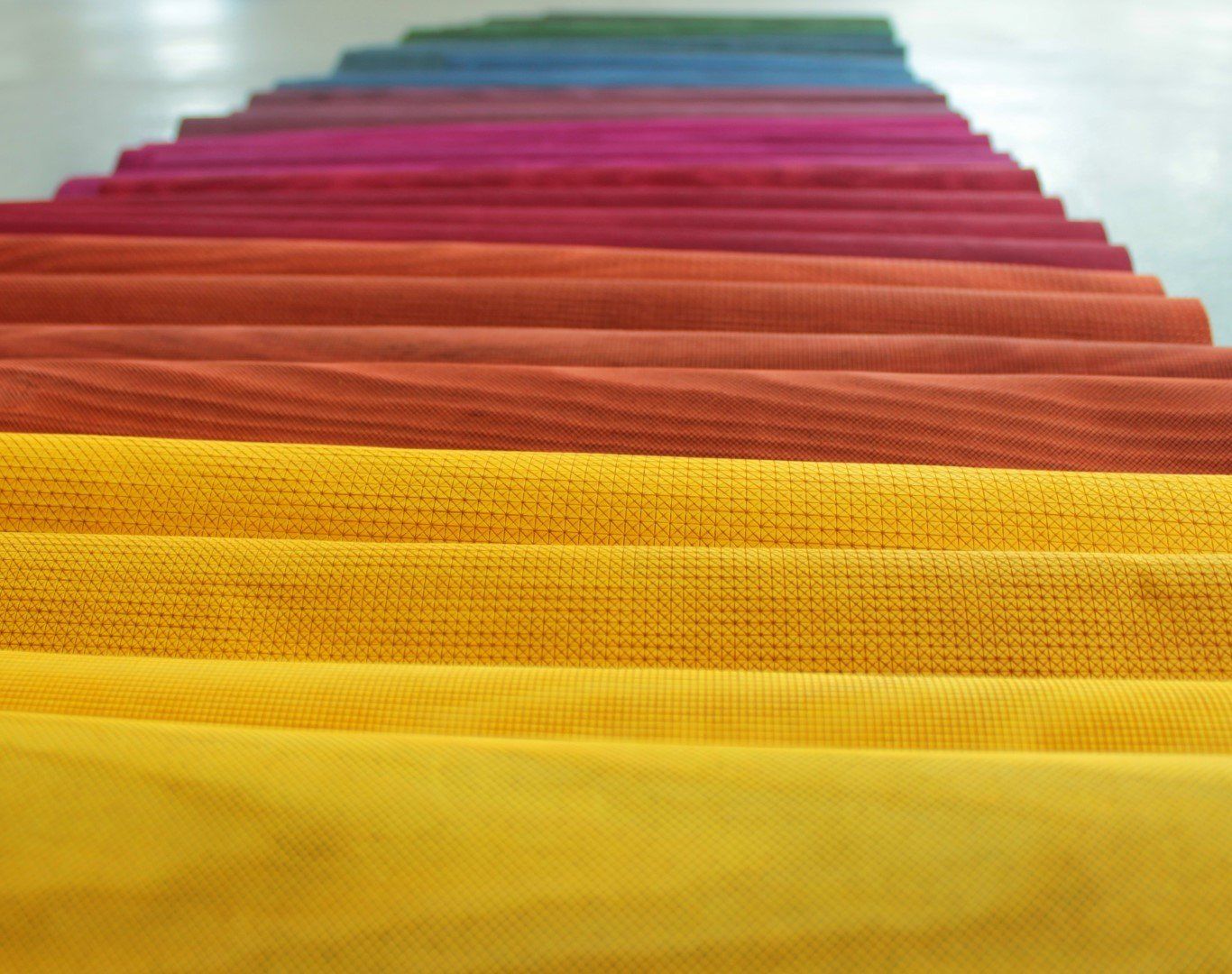

Colouring of the NUO material is possible on order and in different colours. For this purpose the wood specie Fineline Light is used as a basis. The maximum size is 125 cm x 124 cm; the minimum order quantity is 1 sheet in size 125 cm x 62 cm. For larger sizes a minimum order quantity of 300 sqm is required. For further information please contact us.
